Sample Preparation Grinder

Introducation

JZJ TESTING is one of the most reliable manufacturers and suppliers of sample preparation grinder in China, featured by quality products and good price. Please rest assured to buy customized sample preparation grinder from our factory.

PRODUCT DESCRIPTION

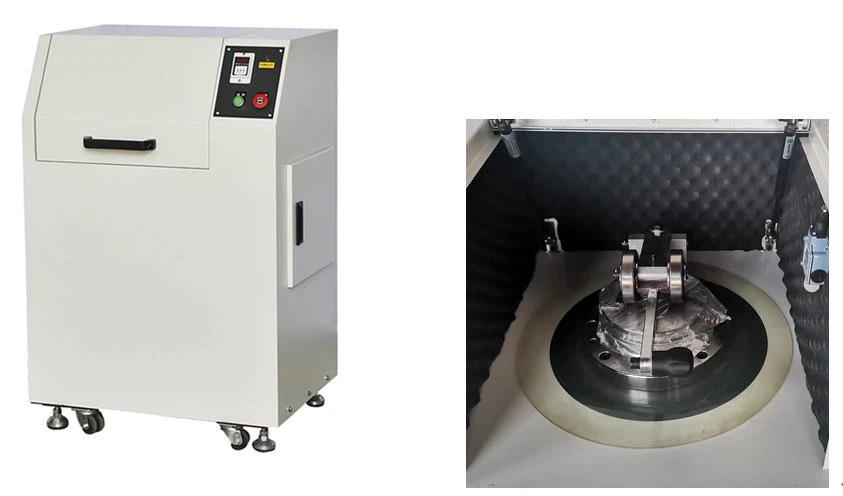

Sample Preparation Grinder
The vibrating mill grinder is a kind of high-strength alloy steel "material bowl" and the alloy steel "grinding body" in the "material bowl" driven by a motor to vibrate strongly, so that the rock or ore sample in the "material bowl" is Common laboratory sample preparation equipment for impact grinding into fine powder.

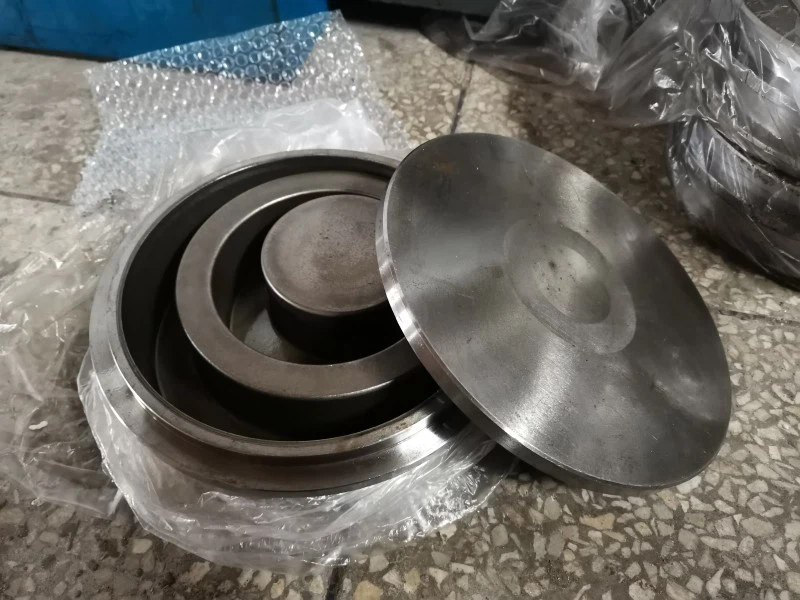

Its working mode is vibration grinding. The machine is driven by a motor. When the motor rotates at a high speed, the strong centrifugal force and vibration force generated by the eccentric hammer mounted on the shaft cause the vibrating steel body to generate exciting force, and the grinding material bowl pressed on the vibrating steel body vibrates and grinds Features. The material is packed in a sealed material bowl. There is a crushing ring and a hammer in the material bowl. The material is crushed and ground by the crushing ring and the hammer to achieve the powdering effect.

This series of pulverizers grind materials through high-frequency vibration and impact. The power adopts a soft connection method in which the motor does not participate in vibration, which ensures that the motor will not be damaged and greatly extends the service life of the machine.

APPLICATION

The sealed vibrating mill is mainly used for crushing raw materials, such as coal, coke, gangue, limestone, and various hard non-metallic ores. Quickly make the material into 80-200 mesh micro powder sample within 2-6 minutes, and directly use it for the test
It is widely used in geology, mining, metallurgy, coal, building materials, light industry, petroleum, chemical plants, quality inspection, universities and other industries.

SPECIFICATION
Model:JZJ-ZM100
Feed Size  : ＜13 mm
Output Size: ＜75μm（200mesh）
Timer Range: 001s ～ 999s
Mill efficiency : 0.5～3 min（adjustable）
Clamping type: Manual compression
Overal  dimensions:720×580×1060mm
Weight:210kg（excluding mill bowl）
Power supply:AC 380V±5%，50Hz，3 phase
Motor:1.5kw-1400r/min（or 1.1kw-935r/min）

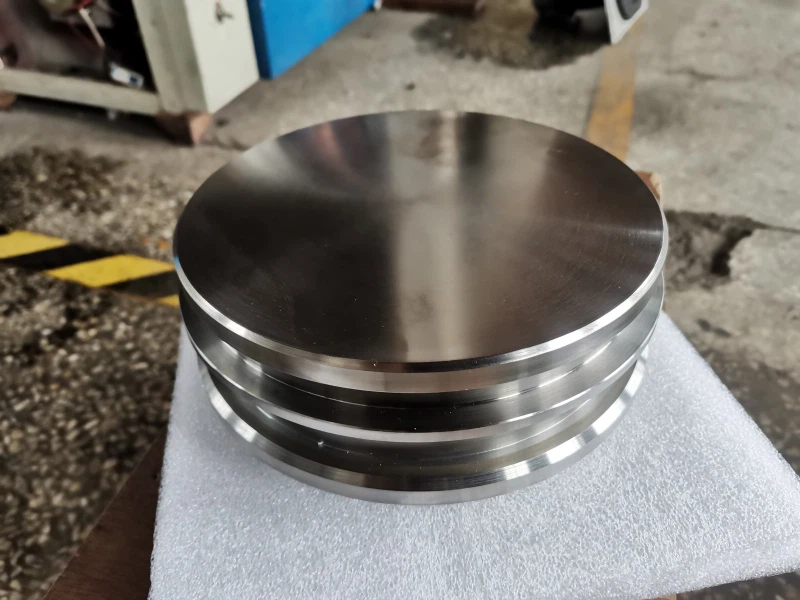

Mill Bowl Capacity: 100cc /200cc/400cc optional
Mill Bowl Material :standard steel/chrome steel/tungstan carbide

Pot number:1/2/3/4/5/7

PRODUCT SELECTION GUICE
1. Select the sample preparation machine (high manganese steel, chromium rigid material bowl, tungsten carbide material bowl, steel jade material bowl) according to the hardness of the sample.
2. The maximum weight of the sample (such as 100g, 200g, 400g, etc.).
3. The number of samples prepared at one time (such as one bowl, two bowls, three bowls, etc.).
4. The grinder is available in environmentally friendly, soundproof, ordinary, and pressure rod models.
