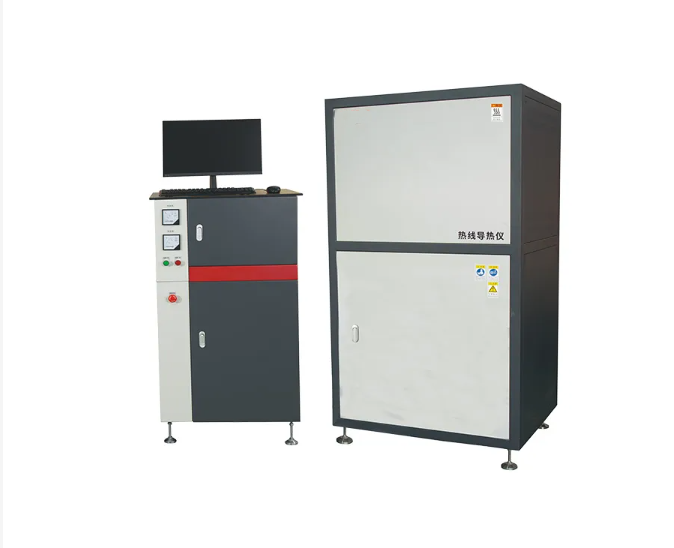

Hot wire Thermal Conductivity Meter
Hot wire Thermal Conductivity Meter

Description

The instrument is used to measure the thermal conductivity and physical properties such as hotmelt of various refractories.

The equipment is manufactured in accordance with the requirements of (equivalent to ISO8894 and ).

IPC industrial computer is used for automatic control, with high-precision acquisition board and special software to achieve accurate temperature control and thermal conductivity measurement, temperature rate can be arbitrarily set within a certain range. The operation interface is friendly, and diplay the temperature-time, hot-wire temperature-time curve and monitor the relevant parameters dynamicly in real-time. The original data can be converted to EXCEL storage format. Test reports with thermal conductivity curves can be accessed and printed at any time.

Specifications

Model/specification RXDR-03PQ
Working temperature(℃) 0～1250
Max.temperature(℃) 1350
Heating-up rate(℃/min) 0～10
Measure range(w/（m·k）) <25
Hearth size(mm) 350×320×280
Quantity of sample 1
Size of sample(mm) 230×114×64
Size of mainframe(mm) 860×1170×920
Power supply 380V 50Hz 10kW
Weight(kg) 430

GET IN TOUCH

Recommended Products
JZJ-GFAC-02 Lab gold testing Fire Assay Cupellation Furnace For Sale

JZJ-GFAC-02 Lab gold testing Fire Assay Cupellation Furnace For Sale

Refractory materials automatic thermal shock testing machine

Refractory materials automatic thermal shock testing machine
Alkali Resistance Tester

Alkali Resistance Tester
High Temperature Compression Strength tester for sale

High Temperature Compression Strength tester for sale

HNJC-HS6800 XRF Spectrometers For Elemental Analysis

HNJC-HS6800 XRF Spectrometers For Elemental Analysis

HNJC-ATW05 Automatic Weighing Machine

HNJC-ATW05 Automatic Weighing Machine
True Density Tester

True Density Tester
Refractoriness under load (RUL) and creep in compression (CIC) testing machine

Refractoriness under load (RUL) and creep in compression (CIC) testing machine
HNJC-XT5 Spin Energy Dispersive X-Fluorescence Spectrometer

HNJC-XT5 Spin Energy Dispersive X-Fluorescence Spectrometer
Hot wire Thermal Conductivity Meter

Hot wire Thermal Conductivity Meter
HNJC-L4E XRF fused bead sample preparation machine

HNJC-L4E XRF fused bead sample preparation machine
Plasticity Index Tester

Plasticity Index Tester

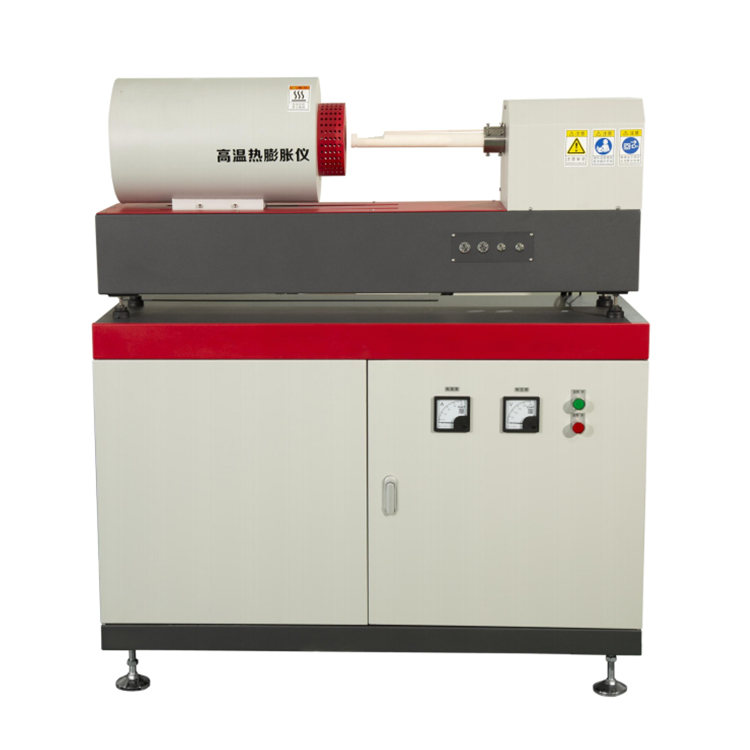

High Temperature Thermal Expansion Coefficient Tester
